Allen Bradley 847H-DN1A-RG02500

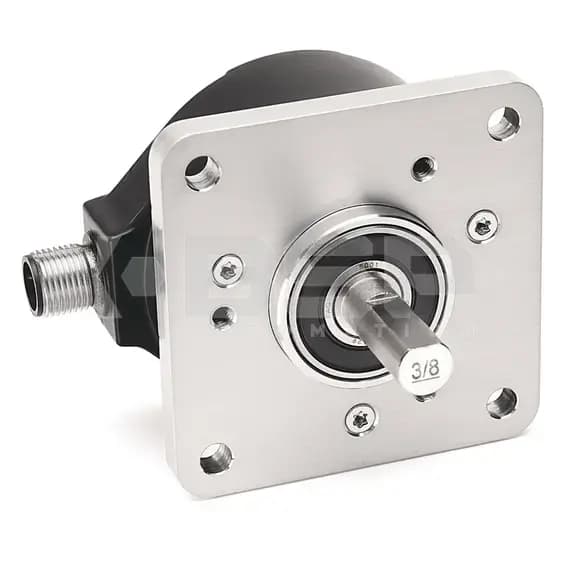

The Allen Bradley 847H-DN1A-RG02500 is an incremental encoder designed with a standard square flange and a 3/8 inch diameter shaft that features a flat for secure mounting. It operates with a 4.5 to 5.5 volt line driver using TTL signals, providing reliable pulse output with 2500 pulses per revolution. The encoder includes an MS-style 10-pin connector along with its mating connector, making integration straightforward in various automation setups. This model’s output configuration supports B-Leads-A signals with clockwise rotation and a gated Z channel for precise position referencing. Distributed by BSP Automation, this encoder is well-suited for applications requiring accurate rotational feedback and robust performance.
