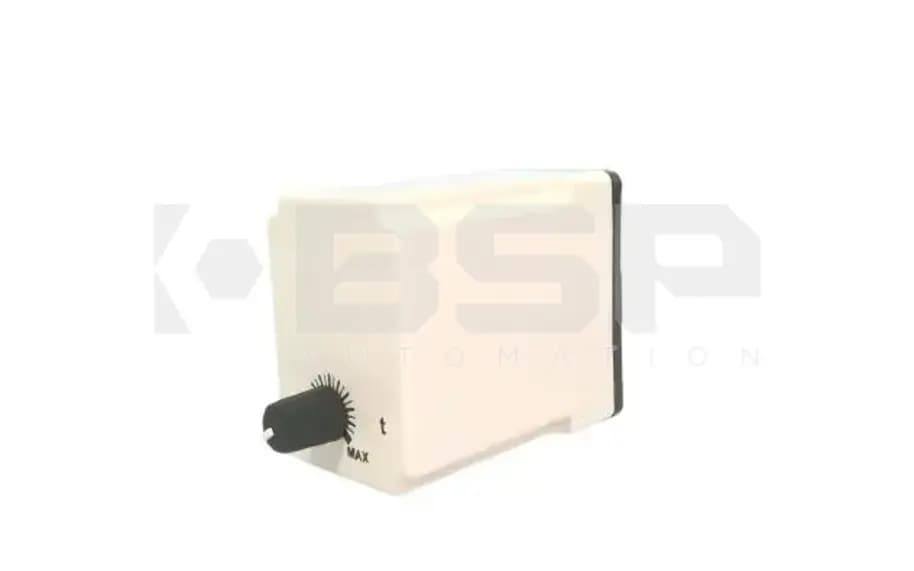

Eaton TMR5N1224

The Eaton TMR5N1224 is a time delay relay from the TMR5 series, designed for on-delay timing applications. It features double-pole double-throw (DPDT) contacts and operates with a 24 VAC/DC input. The timing range is adjustable between 3 seconds and 5 minutes, making it versatile for various control systems. This relay supports switching loads up to 10 amps at 240 VAC or 30 VDC, and can handle motor loads up to 1/2 HP on normally open contacts and 1/3 HP on normally closed contacts at 120/240 VAC. The unit connects via an 8-pin octal-style terminal base for straightforward installation. Eaton’s TMR5N1224 is available through BSP Automation, offering reliable timing control suited for industrial automation tasks.
